And then open it:
Write in the CMD: ipconfig and press Enter.
After that you will see yours Router Default Gateway. ( Leave the CMD open we will use it again later )
for me it's : 10.0.0.137, For you probably it will be : 10.0.0.138
2. Go to your Browser ( Google Chrome, Firefox, Internet Explorer and etc )
Copy the Defualt Gateway and search, It will take you to that page:
After you are logged in, Go to STATUS:
And then click on DHCP Clients:
As you can see the Hostname "Tomer" ( My pc ) All what we need to do is to copy the MAC Address and the IP Adress.
And then go to
Setup ----> Local Network:
And then press on "Add Entries"
And then you need to fill the information that we copied in the above steps:
Mac Address and IP Address:
And then click on Apply.
3. Go to the Start Menu again and search : Network Connections.
and click on View Network Connections.
Select yours Network Device for me it Ethernet:
And then right click on it and choose Properties.
Scroll down to the option: Internet Protocol Version 4(TCP/IPv4)
Select it and Click on Properties:
Fill the Information from the CMD Window ( From the above steps )
Like that:
And then go back to the Router's Page.
And go to ADVANCED ---> Port Forwarding.
Click on Add and then it will take you to that page:
External Port Start: The start of the ports range.
For Example: If you need to open the ports, 1-200
In the start function you will fill: 1
External Port End: The end of the ports range.
On the Example above you will fill : 200
Protocol: The type of the port ( TCP, UDP, or both of them UDP/TCP )
Server IP Address: Like we did before that same one, By that the router knows to which device to open the ports
Use Interface: All you need to know is on what Interface yours Router is using.
How to know that:

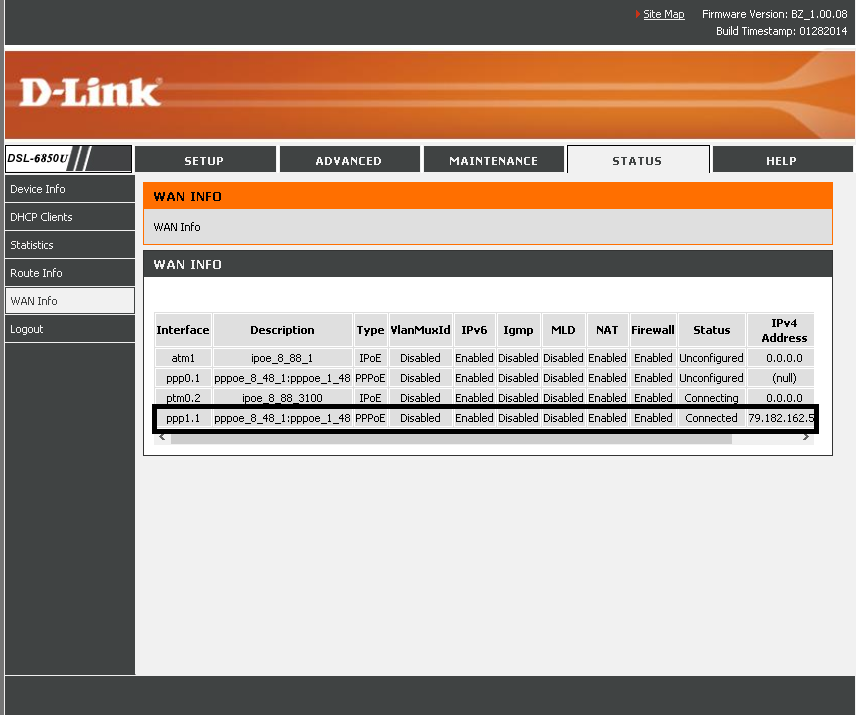

Go to STATUS ----> WAN Info:
Here you need to check the IPv4 Address and to see if it is the same as your public IP.
After filling all the information that you had to, Like that for Example:
Click Apply.
And thats all for that Guide by TomerGuides.
